Product Overview

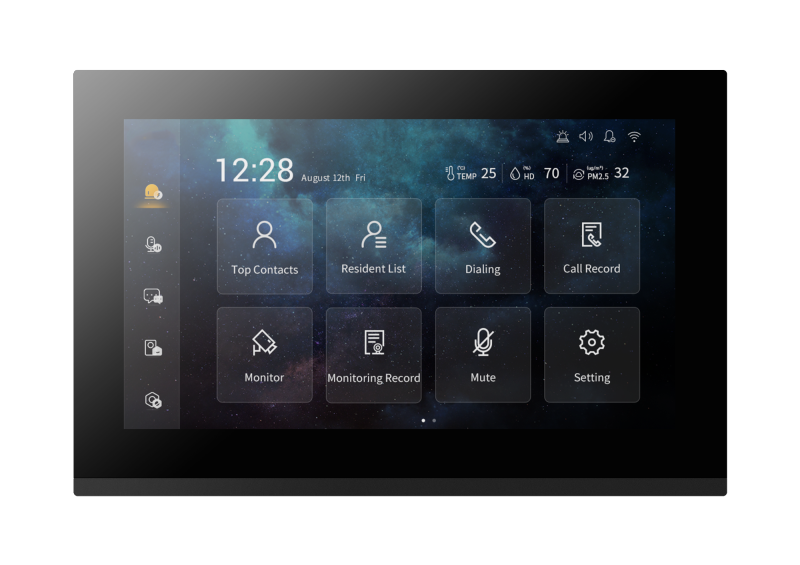

DZ-SI701 is a 7-inch capacitive touch screen SIP indoor monitor belonging to S-series digital video intercom system. It supports POE 48V or DC24V dual-mode power supply, 86-type standard wall-box mounting. Besides visitor video-audio intercom, it integrates call filtering by blacklist & whitelist, missed-call assistant with voice-message recording, RTSP IP-camera surveillance and RS485 smart-home bus control. Multi-language UI fits global residential & building projects, perfectly matching S-series outdoor door stations.
Key Features
✅ 7-inch Capacitive Touch screen:1024×600 high resolution intuitive graphical user interface
✅ Dual Power Input:Support 48V PoE Ethernet power supply or DC24V local power adapter
✅ SIP 2.0 Protocol:Local area auto discovery, support multiple SIP accounts & cloud intercom
✅ Call Security Filter:Blacklist & Whitelist function to block or permit specific visitor calls
✅ Missed call Assistant & Voice Message:Auto answer visitor calls, play greeting and save voice messages
✅ RTSP Surveillance:Monitor S series outdoor stations and third party RTSP supported IP cameras
✅ RS485 Smart Home Bus:Control lighting, air condition, floor heating, fresh air, curtain, background music
✅ Multi language UI:English, Italian, Spanish, French, German, Hebrew, Simplified & Traditional Chinese
✅ Defense zone Input Interface:Multi channel security alarm detection input
✅ Standard 86 box Wall mount Installation, suggested installation height:1.5m
Main Function Description
1. Video & Audio Intercom:Answer visitor calls from outdoor station; support resident to resident intercom in same system; view call records, snapshots and monitoring history.
2. Black / White List Management:Enable blacklist to reject calls from specified contacts; enable whitelist to only accept calls from allowed contacts.
3. Missedcall Assistant:When nobody answers incoming calls, the monitor auto plays pre recorded prompt and records visitor voice message.
4. IPCamera Monitoring:Add outdoor units and IP cameras via RTSP URL for real time preview and snapshot.
5. Smart Home Control via RS485:Onescreen control of lighting, air conditioner, floor heating, fresh air system, curtain, socket and background music scenes.
6. System Setting:Adjust brightness, wallpaper, ringtone, time zone, Wi Fi, cloud intercom binding, password, SIP parameters, factory reset.
7. Do Not Disturb Mode:Manual or scheduled DND mode to mute incoming ringtones.
Specifications Table
|
Item |
Parameter |
|
Model |
DZ-SI701 |
|
Display |
7inch Capacitive TouchScreen, 1024 × 600 |
|
Power Supply |
DC24V / 48V PoE(RJ45) |
|
Quiescent Current |
≤80 mA |
|
Working Current |
≤200 mA |
|
Communication Protocol |
SIP2.0, RTSP, DHCP, NTP |
|
Interface |
RJ45(PoE), RS485, multichannel defensezone input, alarm output, DC24V powerin |
|
Installation |
86×86mm standard wallbox wallmount |
|
Dimension(L×W×D) |
182 × 119 × 15 mm |
|
Working Temperature |
-10℃ ~ +45℃ |
|
Supported Language |
English, Italian, Spanish, French, German, Hebrew, Simplified Chinese, Traditional Chinese |
|
Compatible Device |
Sseries outdoor door station |
Interface Introduction
1. RJ45 Network Port: 48V PoE power & network communication
2. DC24V: External DC24V power input terminal
3. DB / DA: RS485 bus for smart home devices
4. Z1Z8: Multi channel defense zone security sensor input
5. Alarm: Reserved alarm signal output terminal
6. +12V / GND: Power supply for defense zone detectors(max ≤200mA)
Installation Guidance
1. Use standard 86 type wall mount box embedded in wall.
2. Fasten installation bracket onto 86box.
3. Complete all cable wiring before poweron.
4. Hook the indoor monitor onto bracket and lock.
Application Scenarios
Private villa & townhouse smart intercom Multi family apartment & residential building projects Old building renovation & smart home upgrade Overseas residential intercom engineering projects
Compatible Products

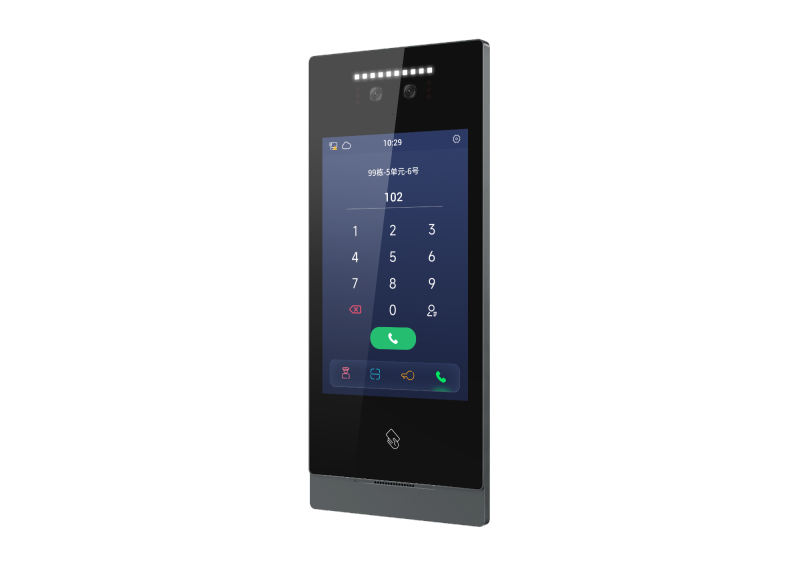

S series 2 wire / SIP outdoor door stations
Frequently Asked Questions
Q1: What power modes are supported?
A: 48V PoE switch or DC24V power adapter, two options available.
Q2: Can it work with third party IP cameras?
A: Yes, support adding third party cameras with RTSP stream URL.
Q3: What smart home devices can be controlled via RS485?
A: Light, air condition, floor heating, fresh air, curtain, socket and background music modules.
Q4: Which outdoor station matchesDZ- SI701?
A: Designed for S series outdoor door stations.
