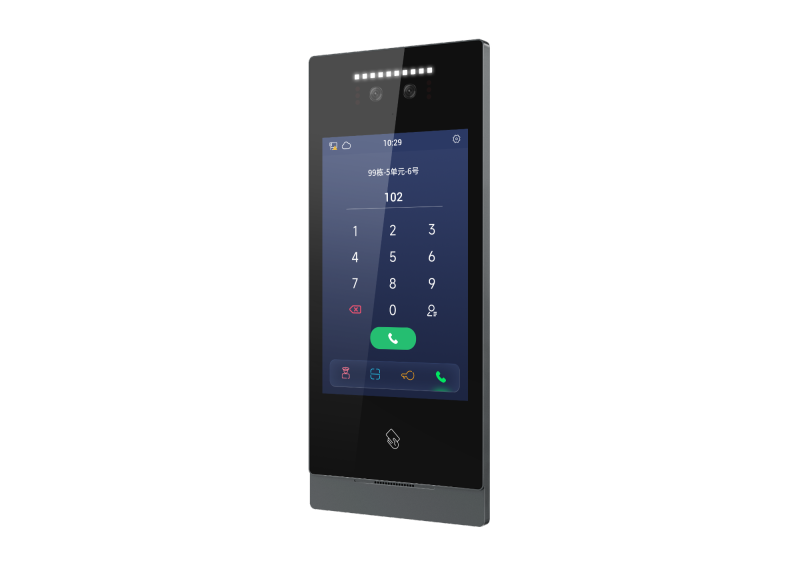

SIP 8" outdoor station, video smart door phone, with face recognition, touch screen

Item No.: DZ-B6406-SIP8
This outdoor station is the main component of the S series digital video intercom system.
It is connected with indoor stations or guard units for communication and unlocking by standard CAT5 cables.
Description Review
Description

Product Overview

DZ-SO801 is an 8-inch capacitive touch screen SIP outdoor station belonging to S-series digital video intercom system. Equipped with binocular wide dynamic near infrared camera, it supports liveness detection, mask compatible face recognition. It offers total 9 unlock methods, local face storage up to 20000 profiles. Three management modes: standalone local mode, LAN server mode and cloud server mode. Dual relay lock output, Wiegand interface, elevator linkage and multiple security alarms are integrated. Three installation solutions: flush embedded, surface wall mount and polemount. Perfectly matches SI701 indoor monitor for villa, apartment and multi family residential projects.

Key Features

✅ 8Inch IPS Capacitive Touch Screen: 800×1280 high resolution interactive display

✅ Binocular WDR Near IR Camera: 2MP CMOS, liveness anti spoofing, mask recognition, fast face matching ≤0.5s, FAR 0.1%

✅ 9Multiple Unlock Modes: Face recognition, IC card, public password, QR code, unlock code, APP remote unlock, indoor monitor unlock, face+IC card dual verification, face+password dual verification

✅ Largecapacity Local Database: Store max 20000 face profiles & 20000 IC cards locally, work without cloud server

✅ Three System Management Modes: Standalone local / LAN server / cloud server optional
✅ DualRelay Output: Control two independent door locks; Wiegand 26/34 output for third party access controller

✅ Rich Alarm Functions: Tamper proof alarm, disconnection alarm, door status over  time alarm

✅ Elevator linkage function: Realize floor call linkage after successful unlocking

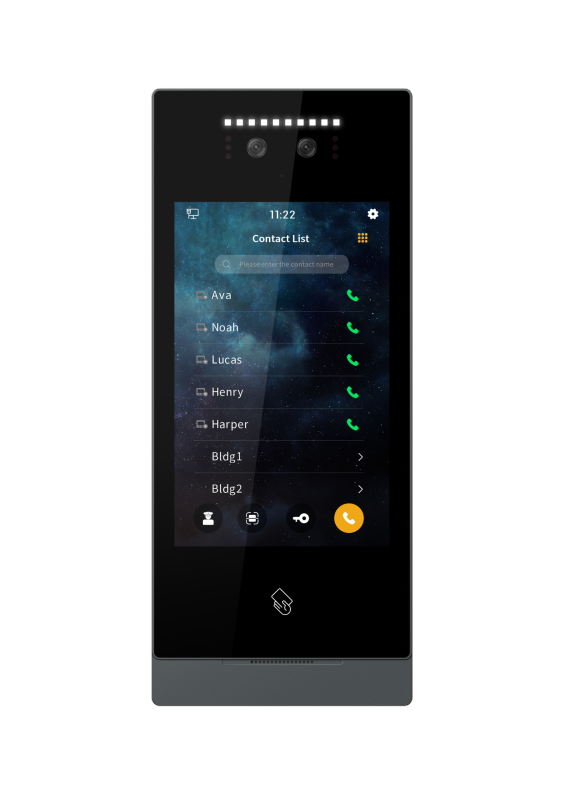

✅ Multiple Call Modes: Contact list call, direct dial SIP account, call management center

✅ Multilanguage UI: English, Italian, Spanish, French, German, Hebrew, Simplified & Traditional Chinese

✅ Three Installation Options: Flush embedded box, wall mount bracket, pole mount assembly
✅ OTA online upgrade, RTSP stream supported

Main Function Description

1. Visitor Call System: Call residents via contact list or direct SIP dial; support simultaneous calling to multiple management center SIP accounts.

2. Facial Recognition Access: Human proximity wake up; binocular liveness detection prevents photospoofing; support mask wearing recognition.

3. Diversified Unlock: Single mode unlock or dual factor verification unlock; QRcode & temporary unlock code work under server enabled mode.

4. Local Access Management: Register / check / delete / clear face data and IC cards directly on device; anti copy card function available.

5. Security Alarm: Tamper alarm for forced disassembly; disconnection warning; door open timeout reminder with audible alert.

6. Hardware Expansion: Dual lock relay control, Wiegand output, elevator linkage, 12V auxiliary power output for detectors.

7. System Configuration: Sound adjustment, timezone / NTP setting, wallpaper customisation, SIP account setup, network DHCP / static IP, OTA firmware upgrade.

Specifications Table

Item

Parameter

Model

DZ SO801

Display

8 inch IPS Capacitive Touch Screen,800 × 1280

Camera

2MP CMOS binocular WDR nearinfrared camera

Face Database

Max 20000 local face profiles

Card Database

Max 20000 IC cards

Recognition Speed

≤0.5s;FAR:0.1%

Protocol

Standard SIP2.0, RTSP, DHCP, NTP

Power Supply

DC18 30V (Typical DC24V)

Static Current

≤150mA @DC24V

Working Current

≤400mA @DC24V

Interface

RJ45 network, dual lock relay NO/COM/NC, Wiegand 26/34, alarm I/O, 12V auxiliary output

Installation

Flush embedded / wall mount / polemount

Dimension(W×H×D)

130 × 308 × 26.5 mm

Working Temperature

-20℃ ~ +70℃

Storage Temperature

-30℃ ~ +70℃

Humidity

≤95% non condensing

Supported Language

English, Italian, Spanish, French, German, Hebrew, Simplified Chinese, Traditional Chinese

Compatible Indoor Unit

DZ-SI701 S series SIP indoor monitor



Interface Introduction

1. RJ45: Network port for SIP communication

2. DCIN: DC1830V power input

3. COM / NO / NC: Dual groups relay dry contact for door lock

4. WGD0 / WG D1 / WG GND: Wiegand signal output

5. ALARMIN1: Alarm signal input

6. +12V / GND: Auxiliary 12V power output for external sensors

Installation Guidance

1. Three installation options: embedded flush box, surface wall bracket, column pole mount kit.

2. Recommended installation height: 1.6m from ground level, align camera with human eye height for best face recognition performance.

3. Complete all wiring before power on.

4. Fasten anti tamper bottom screw after mounting the main unit.

5. Embedded box dimension:114 × 292.5 × 38 mm.



Application Scenarios

  High grade private villa & townhouse   Multi unit apartment & residential community   Commercial compound & office park   Overseas SIP intercom engineering projects

Compatible Products

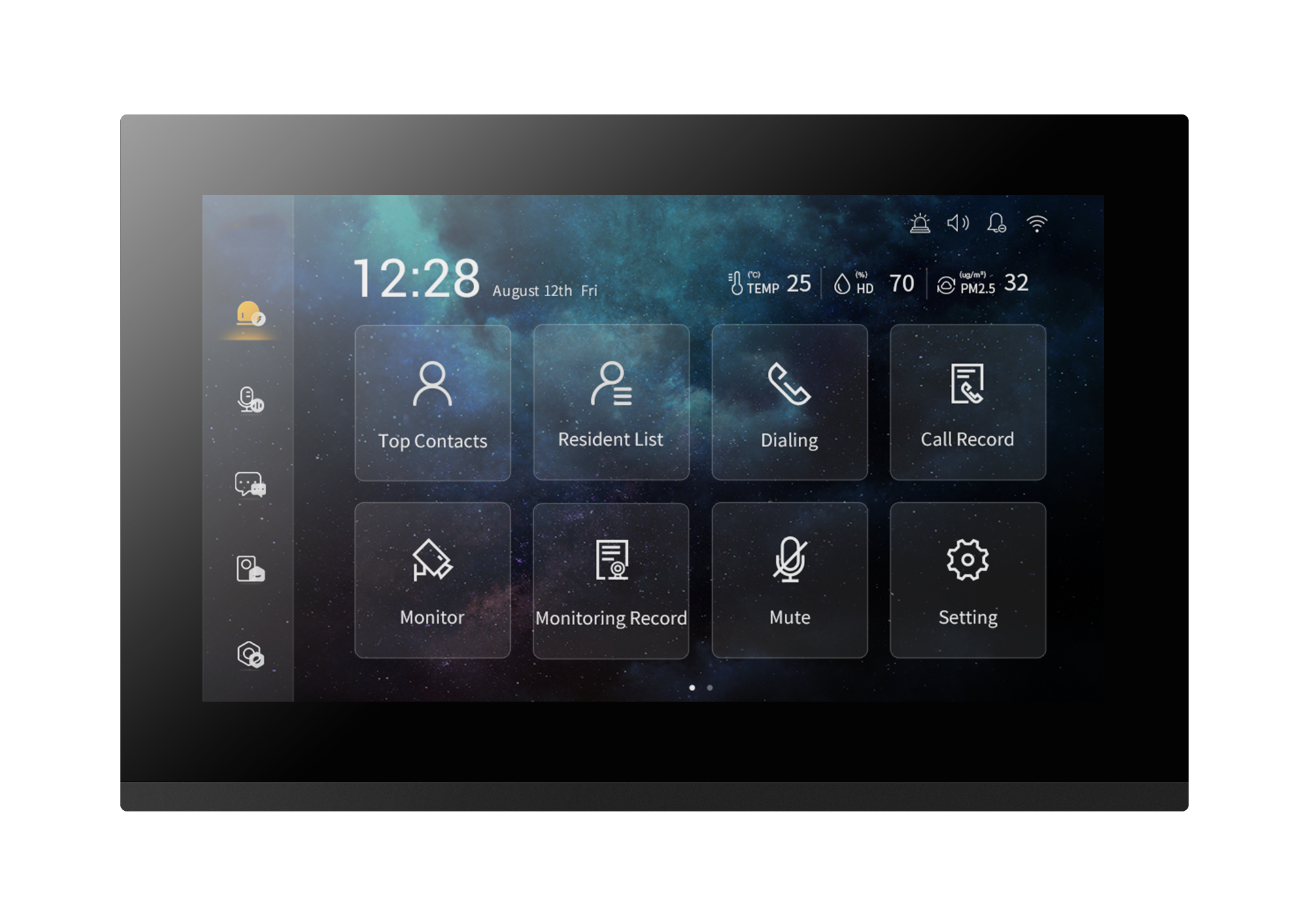

DZ- SI701 7 inch S series SIP indoor monitor

FAQ

Q1: Does it work without cloud server? A: Yes, standalone local mode supports face / IC card unlock. QR code & temporary unlock code functions require server mode.

Q2: What indoor monitor matches DZSO801? A: Designed forDZ- SI701 S series SIP indoor monitor.

Q3: Can it connect third party access control panel? A: Yes, Wiegand 26/34 output supports third party access controllers.

Q4: What installation ways are supported? A: Flush embedded, wall mount, pole column mounting.
