Product Overview

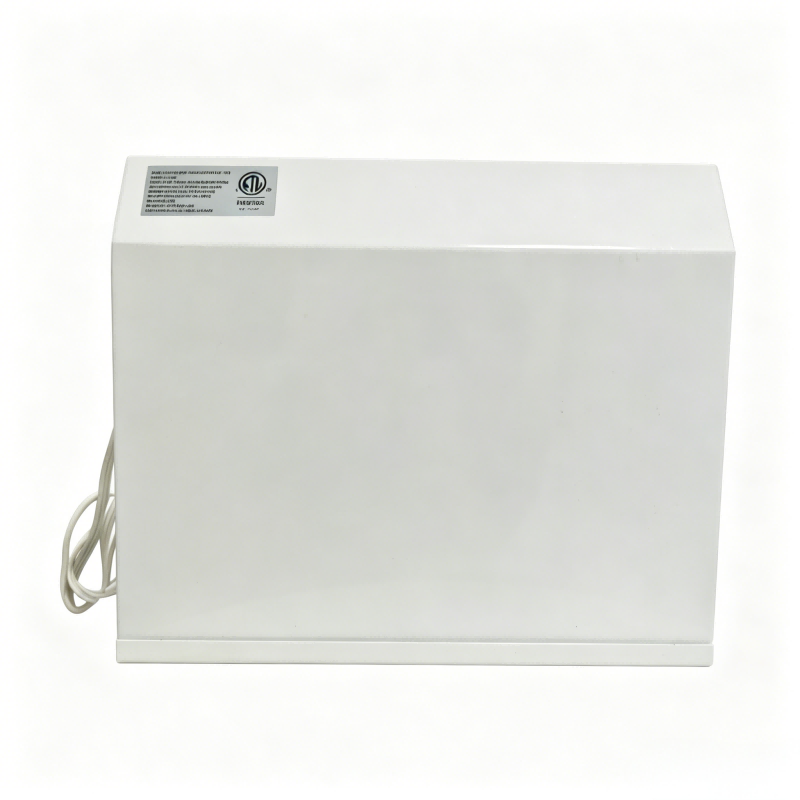

The LH-06H is a high-performance emergency battery backup unit with a rated maximum output power of 72W. It works with a 24V maintenance-free sealed lead-acid battery. The standard emergency runtime is 30 minutes, and full-load discharge runtime can reach up to 24 hours. This unit accepts 120/347VAC wide-range input and is ETL performance certified. Designed for humid environments, it supports top-mounted dual universal wide-voltage remote LED emergency lamp heads. Side mounting is available as an option. It is widely used for emergency lighting backup power in commercial and industrial applications.
Core Features
1. Universal wide-voltage power supply, compatible with North American power grids Supports 120/347VAC, 60Hz AC input with field-selectable voltage setting. Compatible with mainstream North American commercial power systems. No extra transformer modification required.
2. 72W high-power stable output, long emergency runtime Delivers a maximum 72W DC emergency output. Standard emergency runtime of 30 minutes, with full-load discharge exceeding 24 hours to meet lighting demands during extended power outages.
3. 24V maintenance-free battery, zero routine maintenance Built-in 24V sealed lead-acid battery with fully maintenance-free operation. Equipped with an automatic current-limiting charging system; it reaches full charge within 24 hours for extended battery service life.
4. Robust enclosure designed for humid locations Constructed with an 18-gauge heavy-gauge steel enclosure with moisture-resistant structural design. Suitable for direct installation in damp spaces including garages, equipment rooms and storage areas.
5. ETL performance certified, meets North American commercial standards Passed ETL professional performance testing and certification, compliant with North American commercial electrical safety codes. Ideal for commercial projects such as malls, office buildings and factories.

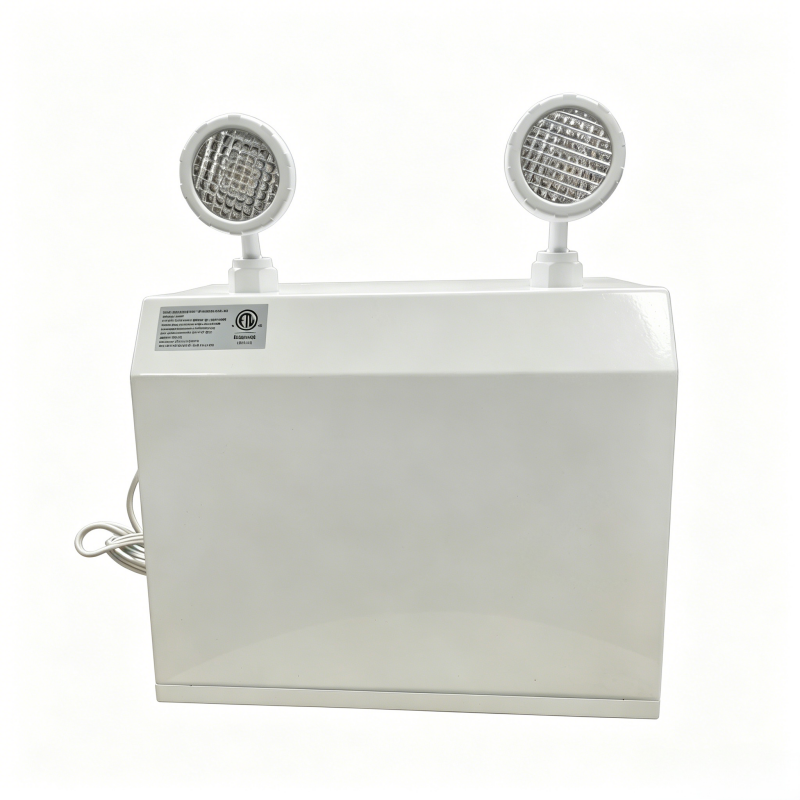

6. Dual remote LED emergency lamp heads, flexible mounting Compatible with top-mounted dual universal wide-voltage remote LED lamp heads. The enclosure comes with pre-cut spider knockouts, conduit openings and keyhole mounting slots. Standard top mounting or optional side mounting supports versatile wiring layouts.
7. Full solid-state intelligent circuit with multiple safety protections Built with an efficient fast-charging precision control system. Integrated protections include circuit lockout, low-voltage cutoff and current limiting. It features a manual test button and indicator LEDs for AC power and charging status, supporting visual self-diagnosis for simple operation.
Electrical Parameters
· Input Voltage: 120/347VAC, 60Hz (field selectable)
· Input Rating: 72W, 600mA / 200mA
· Max Emergency Output: 72W, 24VDC
· Standard Emergency Duration: 30 mins; Full-load Discharge Time: ≥24 hours
· Full Charging Time: 24 hours
· Battery: 24V Maintenance-free Sealed Lead-acid Battery
· Operating Temperature: -10°C ~ 55°C
Mechanical Specifications
· Shell Material: 18 Gauge Heavy Steel Enclosure

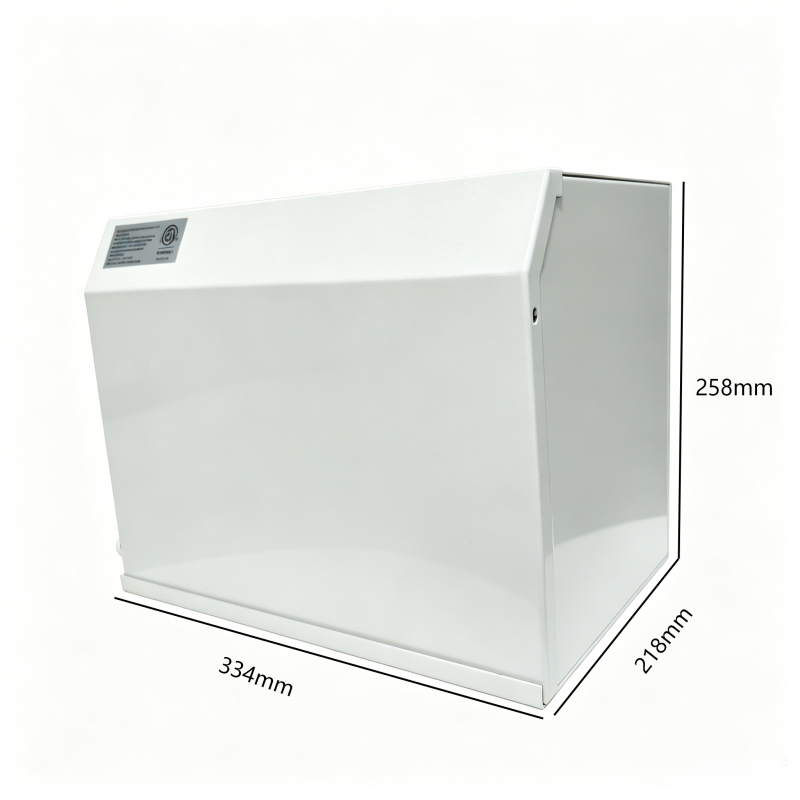

· Overall Dimension: 334mm × 258mm × 218mm
· Standard Accessories: 120VAC Power Cord, Dual Remote Wide-Voltage LED Lamp Heads
· Mounting: Standard Top Lamp Head Mounting, Optional Side Mount
· Cabinet Structure: Universal spider knockout pattern, keyhole mounting slots, multiple conduit entry knockouts
Circuit Design
· Fully automatic current-limited fast charger
· Momentary push-to-test switch

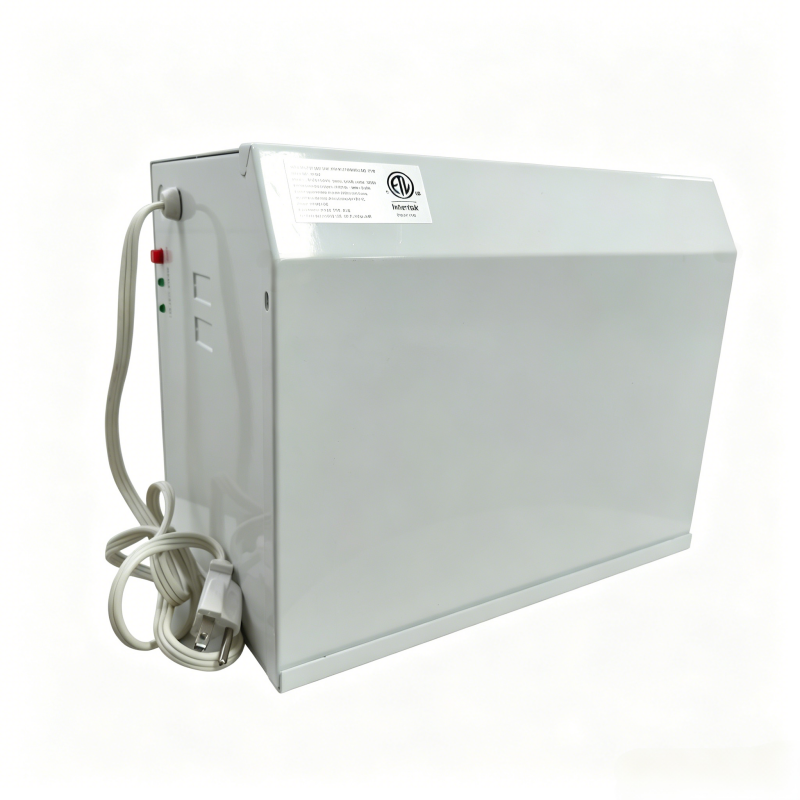

· Dual diagnostic LEDs (AC Power Indicator / Charging Status Indicator)
· Circuit lockout protection & low-voltage cutoff protection
· Full solid-state circuit design for stable performance
Certification
ETL Performance Certified
Application Scenarios
· Commercial complexes, office buildings and damp underground parking garages
· Industrial plants, equipment rooms and logistics warehouses
· Public facilities, corridors and fire exit emergency lighting systems
· North American commercial emergency backup power projects
